1N4007S Diode
A diode is a device which allows current flow through only one direction. That is the current should always flow from the Anode to cathode. The cathode terminal can be identified by using a grey bar as shown in the picture below.
For 1N4007S Diode, the maximum current carrying capacity is 1A it withstand peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible. The power dissipation of this diode is 3W.
1N4007S Diode Datasheet
These Axial Lead Mounted Rectifiers are used for General-Purpose Low-Power Applications
ABSOLUTE MAXIMUM RATINGS (Ta = 25ÂșC)
DESCRIPTION |
SYMBOL |
1N 4007S |
UNIT |
Peak Repetitive Reverse Voltage Working Peak Reverse
Voltage DC Blockng Voltage |
VRRM VRWM VR |
1000 |
V |
Non-Repetitive Peak Reverse Voltage (halfwave,
single phase, 60Hz) |
VRSM |
1200 |
V |
RMS Reverse
Voltage |
VR(RMS) |
700 |
V |
Average Rectified Current at Half Wave 0.375"
Lead Length at Ta = 75ÂșC |
IO |
1.0 |
A |
Non-Repetitive Peak Surge Current 8.3ms single half
sine-wave superimposed on rated Load |
IFSM |
30 |
A |
Thermal Resistance from Junction to Ambient in free
air |
Rth (j-a) |
50 |
ÂșC/W |
Storage Temperature
Range |
Tstg |
-
65 to +175 |
ÂșC |
Operating
Junction Temperature |
Tj |
-65 to +175 |
ÂșC |
ELECTRICAL CHARACTERISTICS (Ta = 25ÂșC unless
specified otherwise)
DESCRIPTION |
SYMBOL |
TEST CONDITION |
MAX |
UNIT |
Maximum Instantaneous Forward Voltage Drop |
VF |
IF =
1.0A |
1.1 |
V |
Maximum Full-Cycle Average Forward Voltage Drop |
VF(AV) |
IO=1.0A, Ta=75ÂșC |
0.8 |
V |
Maximum
Reverse Current |
IR |
at rated
VR TA = 25ÂșC TA = 100ÂșC |
5 500 |
mA |
Maximum Full-Cycle Average Reverse Current |
IR(AV) |
IO=1.0A, Ta=75ÂșC |
30 |
mA |
Junction
Capacitance |
Cj |
VR = 4V, f = 1MHz |
typ 15 |
pF |

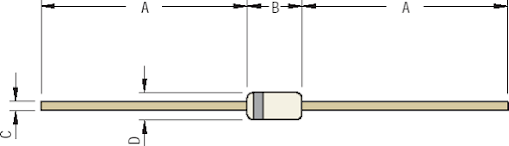

A-405 Axial Lead Plastic Package
DIM |
Min |
Max |
A |
25.40 |
|
B |
4.20 |
5.20 |
C |
0.55 |
0.65 |
D |
2.30 |
2.70 |
All Dimensions
are in mm
CHARACTERISTICS CURVES
AMMO PACKING FOR A-405
All Dimensions are in mm
Packaging
Information
Package/ Case Type |
Packaging Type |
Std. Packing |
Inner Carton |
Outer Carton |
|||
Qty |
Qty |
Size L x W x H |
Gross Weight |
Qty |
Size L x W x H |
||
|
|
|
|
(cm) |
(Kg) |
|
(cm) |
A-405 |
T&A |
5,000 |
5K |
27 x 8 x 14 |
1.96 |
45K |
46 x 35 x 25 |
T & A: Tape and Ammo
Pack
AXIAL TAPE FOR A-405
|
All Dimensions are in mm
TAPE SPECIFICATIONS
1. 300 mm (Min) leader tape on every roll.
2. No. of empty places allowed 0.25% without consecutive empty places.
3. Ends of leads shall normally not protrude beyond the tapes.
4. Components shall be held sufficiently in the tape or tapes so that they cannot come free in normal handling.
Component Disposal Instructions
1.
CDIL Semiconductor Devices
are RoHS compliant, customers are requested to please dispose as per prevailing Environmental Legislation of their Country.
2.
In Europe, please
dispose as per EU Directive
2002/96/EC on Waste Electrical and Electronic
Equipment (WEEE).
